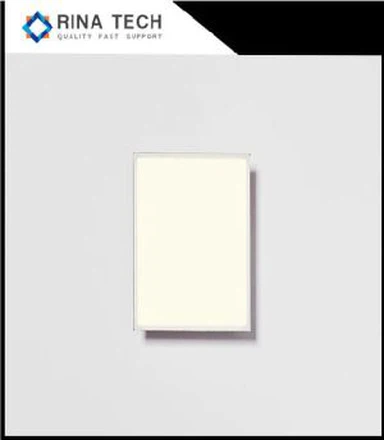

Factory Custom High Brightness Me LED Backlight
Cov ntsiab lus ntawm LED Backlight:
Qhov ci ntsa iab LED no yog tib yam siv nyob rau hauv backlights rau LCD zaub, feem ntau yog tucked tom qab cov zaub.
Cov LEDs yog encased nyob rau hauv acrylic los tsim ib tug zoo nkauj txawm lub teeb, thiab muaj ib tug reflector daim ntawv tom qab kom ua kom lub teeb bounced rau pem hauv ntej.
- Kev xa khoom sai
- Kev Nyab Xeeb Zoo
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Factory Custom High Brightness Me LED Backlight
Product Description:
LED backlight hais txog cov thev naus laus zis siv hauv LCD cov lus qhia kom pom qhov screen. LED stands rau Lub Teeb Emitting Diode, thiab yog ib hom semiconductor uas tuaj yeem tawm lub teeb thaum muaj hluav taws xob dhau los ntawm nws. Kev siv LED backlights tau dhau los ua ntau dua nyob rau xyoo tas los no vim nws muaj ntau yam zoo dua li cov thev naus laus zis thev naus laus zis.
LED Back Khoom zoo:
Ib qho ntawm qhov zoo ntawm LED backlight yog nws lub zog ua haujlwm. LED backlights siv lub zog tsawg dua li cov teeb pom kev zoo ib txwm muaj, ua rau lawv tus phooj ywg zoo dua thiab raug nqi. LED backlights kuj tuaj yeem hloov kho kom muab qhov zoo ntawm qhov ci rau lub vijtsam, uas yuav pab txo qis kev siv hluav taws xob ntxiv.
Lwm qhov txiaj ntsig ntawm LED backlight yog tias nws tsim cov duab ci dua thiab pom tseeb dua piv rau cov teeb pom kev zoo nkauj. Qhov no yog vim hais tias LED backlights siv lub teeb dawb, uas yog kev sib xyaw ntawm lub teeb liab, ntsuab thiab xiav, los tsim cov duab zoo nkauj thiab zoo nkauj ntawm lub vijtsam. Qhov no yog tshwj xeeb tshaj yog pab tau thaum saib cov ntsiab lus nyob rau hauv kaj los yog tsaus ib puag ncig, raws li cov duab tseem yuav pom meej meej.
LED Backlight Parameters:
| Loj&Suab | Customized |
| Teeb Xim | R, W, Y, YG, O, B, G, RB, RG, BG, RBG |
| Backlight Thickness | (1. 0mm/1.5mm/2.0mm/2.5mm/3.0mm/3.5mm/4. .0mm) ntxiv rau 0. |
| Kev sib txuas | PCB Self Contained Pin, PCB Tawm Pin, Plug-in Teeb-Pin, Chip Lamp-terminal Hlau, Chip Teeb Lead, FPC |
| Cov Hlau Txuas Pin Specification | Ntev & kom muaj nuj nqis Ob leeg tuaj yeem hloov kho raws li qhov xav tau |
| Dawb LED Teeb Voltage | 2.8V rau 3.4V |
| Xim LED Teeb Voltage | 1.8V rau 2.4V |
| Ua haujlwm kub | -30 degree ~ 80 degree (Max) |
| Txuas | Hlau Pin, Roj Hmab Zebra, FPC |
| Backlight | Led Backlight Yeem |
LED Backlight:
LED backlighting kuj tseem siv tau ntau dua thiab siv tau ntev dua li cov qauv kev teeb pom kev zoo. LED backlights muaj lub neej ntev dua vim tias lawv tsis muaj filament uas tuaj yeem tawg dhau sijhawm. Tsis tas li ntawd, lawv muaj kev tiv thaiv ntau dua rau kev poob siab thiab kev co, ua rau lawv zoo tagnrho rau kev siv hauv cov khoom siv txawb thiab lwm hom kev sib tw rugged.
Thaum kawg, LED backlighting yog ntau yam thiab tuaj yeem siv ntau yam kev siv zaub. LED backlights tuaj yeem siv hauv TV, khoos phis tawj saib, xov tooj ntawm tes, thiab txawm tias lub tsheb qhia. Raws li thev naus laus zis txuas ntxiv mus, LED backlights yuav dhau los ua ntau dua hauv kev lag luam zaub.
Nyob rau hauv xaus, LED backlighting yog ib tug technology uas muaj ntau yam zoo dua li ib txwm backlighting txoj kev. Nws yog lub zog-npaum, ua kom pom cov duab ci dua thiab pom tseeb, thiab ruaj khov thiab ntau yam. Raws li qhov kev thov rau ntau lub zog-npaum thiab ib puag ncig tus phooj ywg kev xaiv nce ntxiv, LED backlighting yuav txuas ntxiv ua lub luag haujlwm tseem ceeb hauv kev lag luam zaub.
LED Backlight Khoom Zaub:
Connector:
Cov strips zoo nkauj ntawm lub teeb no yog cov yas diffused backlights, feem ntau pom hauv LCD zaub. Feem ntau lawv nyob tom qab lub LCD thiab ci lub teeb dawb ntawm hauv qab. Ntawm no, peb tau txais cov LEDs muaj nyob ib leeg thiab lawv tau txias heev! Txhua LED yog encased nyob rau hauv ib tug 3.5 hli tuab strip ntawm acrylic. Lub acrylic sawb yog ib hom tshwj xeeb uas zoo heev ntawm diffusing lub teeb, yog li txawm tias tsuas muaj ib qho dawb LED, nws muab cov teeb pom kev zoo nyob ze. Lwm lub tiaj tiaj ntawm lub sawb muaj lub ntsej muag rau ntawm nws yog li koj tsuas yog tau txais lub teeb los ntawm sab saum toj (tsis li ntawd lub teeb rov qab yuav poob 1/2 qhov ci tsis tsim nyog).
Khoom siv:
LED backlight yog lub teeb pom kev zoo siv tshuab feem ntau siv hauv cov khoom siv hluav taws xob, uas tuaj yeem ua rau cov khoom siv yav dhau los ci dua thiab pom tseeb dua. Nrog kev txhim kho txuas ntxiv ntawm thev naus laus zis, daim ntawv thov scenarios ntawm LED backlight tau dav heev. Cov hauv qab no yuav qhia txog qee qhov xwm txheej ntawm daim ntawv thov.
1. TV, saib
Hauv TVs thiab saib, LED backlight tuaj yeem siv los ua kom pom tag nrho lub vijtsam kom cov duab pom tseeb thiab meej. Feem ntau TV thiab saib cov ntaub ntawv backlight muaj xws li hom ncej, hom puv npo thiab hom ncaj qha. Ncej hom thiab puv npo hom yog feem ntau. LED backlights yog ntsia rau ntawm lub thav duab thiab lub vaj huam sib luag tom qab ntawm TVs thiab saib, thiab teeb lub teeb rov qab rau tag nrho lub vijtsam los ntawm kev xav. Qhov ncaj-hom LED backlight yog ntsia rau hauv qab ntawm lub vijtsam, thiab cov duab ntawm qhov screen yog backlit los ntawm lub teeb qhia phaj hauv qab ntawm qhov screen.
2. Txawb xov tooj thiab ntsiav tshuaj computer
Hauv cov xov tooj ntawm tes thiab ntsiav tshuaj computers, LED backlight tuaj yeem txhim kho qhov pom thiab xim saturation ntawm lub vijtsam, ua rau lub vijtsam haum rau cov neeg siv los xauj lub vev xaib, saib yeeb yaj kiab thiab lwm yam haujlwm. Vim lub vijtsam me me ntawm cov xov tooj ntawm tes thiab ntsiav tshuaj computers, LED backlights feem ntau txais yuav cov teeb pom kev ncaj qha. Tsis tas li ntawd, LED backlight tseem tuaj yeem siv rau ntawm cov keyboard backlight thiab sab teeb ntawm lub xov tooj ntawm tes thiab ntsiav tshuaj los txhim kho cov neeg siv kev paub.
3. Tsheb dashboard, xov tooj cua
Nyob rau hauv lub tsheb dashboard thiab xov tooj cua, LED backlight yuav siv tau rau lub digital zaub ntawm lub teeb pom kev zoo dashboard, txoj hauj lwm ntawm lub dashboard pointer, lub xov tooj cua zaus zaub, ntim hloov thiab lwm yam dej num, uas yog yooj yim rau tus neeg tsav tsheb khiav lag luam thiab txhim kho kev tsav tsheb. kev nyab xeeb kev ua haujlwm. Vim tias cov teeb pom kev nruj nruj rau lub tsheb dashboards thiab xov tooj cua, LED backlights tuaj yeem muab qhov ci ntsa iab thiab xim saturation.
4. Advertising teeb lub thawv
Nyob rau hauv lub thawv advertising lub teeb, LED backlight yuav siv tau los ua ntau yam dynamic lub teeb lub thawv, tsis xwm yeem lub teeb lub thawv duab thiab lwm yam teebmeem, uas yog siv rau sab hauv tsev thiab sab nraum zoov advertising, tso saib thiab tsim ib tug coj mus muag chaw. Piv nrog rau cov khoom siv hluav taws xob fluorescent lub teeb lub thawv, LED backlight muaj qhov zoo ntawm kev ua haujlwm ntev, txuag hluav taws xob, siab ci, thiab lwm yam, thiab yog siv dav hauv khw malls, squares thiab lwm qhov chaw pej xeem.
Cov ntawv pov thawj
Vim li cas thiaj xaiv US
1. Customized loj & brightness kom tau raws li tus neeg yuav tsum tau muaj.
2. Back-lit LED emitting tsim, siab effciency thiab uniformity ntawm lub teeb emission.
Compay Profile:
FAQ
| Q: Kuv puas tuaj yeem muaj tus qauv txiav txim? |
| A: Yog, koj zoo siab tos txais los sim peb cov qauv. |
| Q: Kuv tuaj yeem tau txais cov qauv li cas? |
|
A: Koj xa daim duab kos lossis CAD kos duab lossis qhia peb koj lub tswv yim → Peb muab cov lus hais → Koj lees paub cov lus hais & Ua kom them nyiaj → Peb muab kev kos duab → Koj paub meej tias kos duab → Peb ua cov qauv → xa tuaj rau koj. |
| Q: Kuv tuaj yeem cia siab tias yuav tau txais cov qauv ntev npaum li cas? |
| A: Kev kos duab kos duab: 2-3 hnub; Sample time: 5-7 hnub ua haujlwm. |
| Q: Yuav ua li cas tso cov xaj? |
| A: Cov qauv yog OK rau koj → Koj xa peb daim ntawv xaj → Peb xa koj Proforma Invoice → Koj them nyiaj → Peb pib npaj ntau lawm. |
| Q: Ntev npaum li cas ntawm kev tsim khoom loj? |
| A: 10-12 hnub ua haujlwm. Nws nyob ntawm qhov kev txiav txim sib txawv thiab tus lej. |
